Camera

Image Sensor

1/1.8” CMOS

Pixel

2,42MP

Max. Resolution

1920(H) x 1080 (V)

ROM

8GB

RAM

2GB

Electronic Shutter Speed

1/3 s–1/100000 s

Scanning System

Progressive

Min. Illumination

Color: 0.001Lux@F1.4
B/W: 0.0001Lux@F1.4
0Lux (IR light on)

Illumination Distance

450 m (1476.38 ft)

Illuminator On/Off Control

Zoom Prio/Manual/SmartIR

Illuminator Numbe

Wiper

Smart Wiper

Lens

Focal Length

5.7 mm–275 mm

Max. Aperture

F1.4–F4.5

Field of View

H: 64.6°–1.5°; V: 35.6°–1.0°; D: 68.5°–2.0°

Optical Zoom

48x

Focus Control

Auto/Semi-Auto/Manual

Close Focus Distance

0.01 m–1.5 m (0.03 ft–4.92 ft)

Iris Control

Auto/Manual

DORI Distance

Detect

Observe

Recognize

Identify

2730.67 m
(8958.89 ft)

1092.27 m
(3583.56 ft)

546.13 m
(1791.76 ft)

273.07 m
(895.89 f

PTZ

Pan/Tilt Range

Pan: 0°–360° (endless)
Tilt: -30°–+90° (auto-flip 180°)

Manual Control Speed

Pan: 0.1°/s–200°/s
Tilt: 0.1°/s–120°/s

Preset Speed

Pan: 240°/s
Tilt: 200°/s

Presets

300

Tour

8 (up to 32 presets per tour)

Pattern

Scan

Speed Adjustment

Support

Power-off Memory

Support

Idle Motion

Preset/Tour/Pattern/Scanning

Protocol

DH-SD Pelco-P/D (auto recognition)

General Intelligence

Event Trigger

Motion detection, Video tampering, Scene changing, Network disconnection, IP address conflict, Illegal Access, Storage anomaly

IVS

Object Abandoned/Missing

Artificial Intelligence

Video Metadata

Support human body, human face, motor vehicle and non-motor vehicle image capture and attributes extraction.

Perimeter Protection

Tripwire and intrusion. Support alarm triggering by target types (human and vehicle). Support filtering false alarms caused by animals, rustling leaves, bright lights, etc.

Auto Tracking

Support

Video

Compression

H.265+/H.265/H.264+/H.264/MJPEG (sub stream)

Streaming Capability

3 streams

Resolution

1080P (1920 × 1080); 1.3 M (1280 x 960); 720P (1280 × 720);
D1 (704 × 576); CIF (352 × 288)

Frame Rate

Main stream: 1080p/1.3 M/720p (1–50/60fps)
Sub stream 1: D1/CIF (1–25/30fps)
Sub stream 2: 1080p/1.3 M/720p (1–25/30fps)

Bit Rate Control

Variable Bit Rate/Constant Bit Rate

Bit Rate

H.264: 32 kbps–8192 kbps
H.265: 32 kbps–8192 kbps

Day/Night

Auto (ICR)/Color/B/W

BLC

Support

WDR

120 dB

HLC

Support

White Balance

Auto/Indoor/Outdoor/Track/Manual/Sodium lamp/ Natural light/Street lamp

Gain Control

Auto/Manual

Noise Reduction

2D/3D

Motion Detection

Support

Region of Interest (RoI)

Support

Image Stabilization

Electronic

Defog

Optical

Digital Zoom

16x

Flip

180°

Privacy Masking

Up to 24 areas, and up to 8 areas in the same view

Audio

Compression

G.711a; G.711mu; G.726; AAC; G722.1; G.729; MPEG2- Layer2

Network

Ethernet

(built-in RJ-45 port, support 10 M/100 M network data)

Protocol

IPv4; IPv6; HTTP; HTTPS; 802.1x; Qos; FTP; SMTP; UPnP; SNMPv1/v2c/v3(MIB-2); DNS; DDNS; NTP; RTSP; RTP; TCP; UDP; IGMP; ICMP; DHCP; PPPoE; ARP; RTCP

Interoperability

ONVIF Profile S&G&T; CGI

Streaming Method

Unicast/Multicast

User/Host

Storage

FTP; Micro SD card (256 G)

Browser

IE7 and newer versions Chrome 45 and newer versions Firefox 52 and earlier versions Safari (no version restrictions)

Management Software

Smart PSS, DSS, DMSS

Mobile Phone

IOS/Android

Certification

Certifications

CE: EN55032/EN55024/EN50130-4
FCC: Part15 subpartB, ANSI C63.4-2014

Port

Video

1 port (BNC, 1.0V [p-p], 75Ω)

RS-485

Audio Input

Audio Output

Alarm I/O

7/2

Power

Power Supply

DC36V/2.23A
Hi-PoE

Power Consumption

19W
42W (PTZ Pan/Tilt, IR light on, wiper on)

Environment

Operating Temperature

-40°C to +70°C (-40°F to +158°F)

Operating Humidity

≤95%

Protection

IP67; TVS 8000V lightning proof; Surge protection

Structure

Casing

Aluminium alloy ADC12

Dimensions

Φ300 mm × 527 mm (11.81" × 20.75")

Net Weight

13 kg (28.66 lb)

Gross Weight

18.2 kg (40.12 lb)

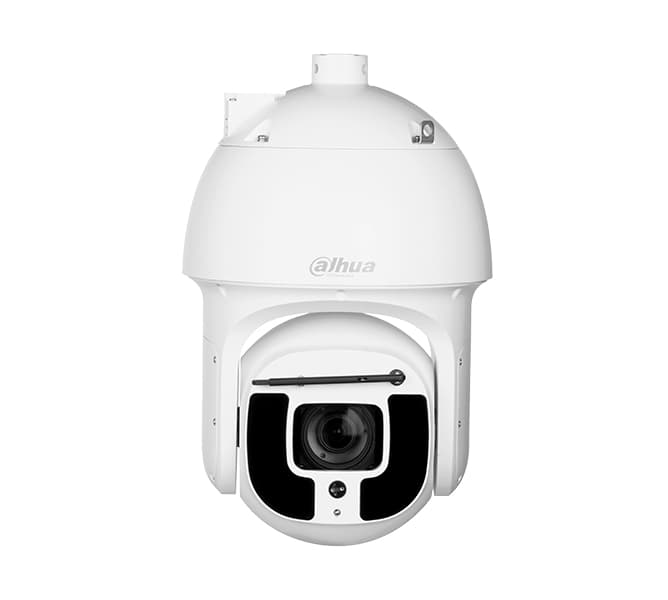

2MP 48x Starlight+ IR WizMind IP PTZ Kamera
