Stok Kodu: XG-SFP-SR-MM850
| Genel Özellikler | |
|---|---|
| Model | XG-SFP-SR-MM850 |
| Ürün Tipi | 10GBASE-SR SFP+ Optik Alıcı-Verici Modülü |
| Veri Hızı | 10.3125 Gbps |
| Form Faktörü | SFP+ |
| Konnektör Tipi | Duplex LC |
| Kablo Tipi | MMF (Çok Modlu Fiber) |
| Fiber Uç Yüzeyi | Ultra Physical Contact (UPC) |
| Verici Tipi | VCSEL |
| Alıcı Tipi | PIN |
| İletim Mesafesi | 300 m (984.25 ft., OM3 fiber optik kablo ile); 400 m (1312.34 ft., OM4 fiber optik kablo ile) |
| Bit Hata Oranı (BER) | 1.00E-12 |
| Dijital Optik İzleme (DDM/DOM) | Var |
| Güç Tüketimi | ≤ 1.5 W |
| Verici Optik Parametreleri | |
| Dalga Boyu | 850 nm |
| Maks. Çıkış Optik Gücü (ORT) | –1 dBm |
| Min. Çıkış Optik Gücü (ORT) | –7.3 dBm |
| Min. Söndürme Oranı | ≥ 3.0 dB |
| Alıcı Optik Parametreleri | |
| Alıcı Duyarlılığı (OMA) | < –11.1 dBm |
| Aşırı Yükleme Optik Gücü (ORT) | –1 dBm |
| Ortam ve Güvenilirlik | |
| Çalışma Sıcaklığı | 0°C ~ 70°C (32°F ~ 158°F) |
| Çalışma Nemi | 10% RH ~ 90% RH |
| Depolama Sıcaklığı | –40°C ~ +85°C (–40°F ~ +185°F) |
| Depolama Nemi | 10% RH ~ 90% RH |
| Boyutlar ve Ağırlık | |
| Boyutlar (G × D × Y) | 56.5 mm x 13.5 mm x 8.5 mm (2.22 in. x 0.53 in. x 0.33 in.) |
| Ağırlık | 35 g (0.08 lbs.) |
| Standartlar | |
| Standart Uyumluluğu | IEEE 802.3ae, SFF-8431, SFP+ Multisource Agreement (MSA), RoHS |
●The 4 fixed 10G BASE-X ports upgrade the network to a 10G uplink backbone to protect user investment.
●Strong security management mechanisms provide network security defense, high-security access control, and effective network access control.
●Superior management policies facilitate bandwidth management and ensure the performance of key applications such as voice/video conference, music and video streaming and Video on Demand (VoD).

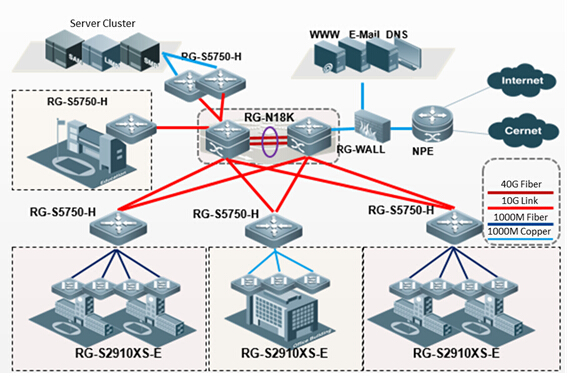

Typical Application 1
As the aggregation layer switch of large campus network, RG-S5750-H Series Switches offers high-performance bandwidth link with 10G aggregation to core and higher bandwidth for the access device to meet the growing demand of user traffic.

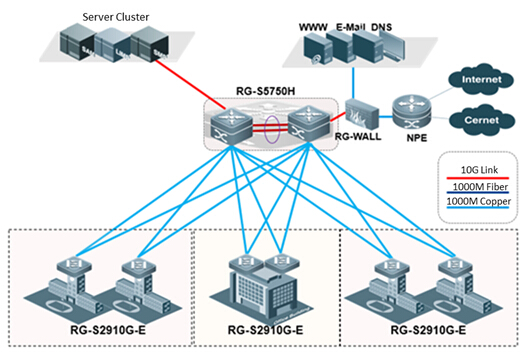

Typical Application 2
The RG-S5750-H Series Switches can be deployed as core switches in small and medium enterprises. The VSU technology not only simplifies the network architecture, but also significantly improve the reliability and efficiency of the network system.
